Schnellboot -
My Build of Jack's Robbe S130.
Part 11
- An artist at work. |
Index
1 2
3
4 5
6
7 8
9
10 11
12
13
14
Links |
Click on photos to enlarge
|

|
Back
down to 'Bradders' place this week.
A bit more rubbing down and a wash and we were ready to mark the
waterline. |
 |

|

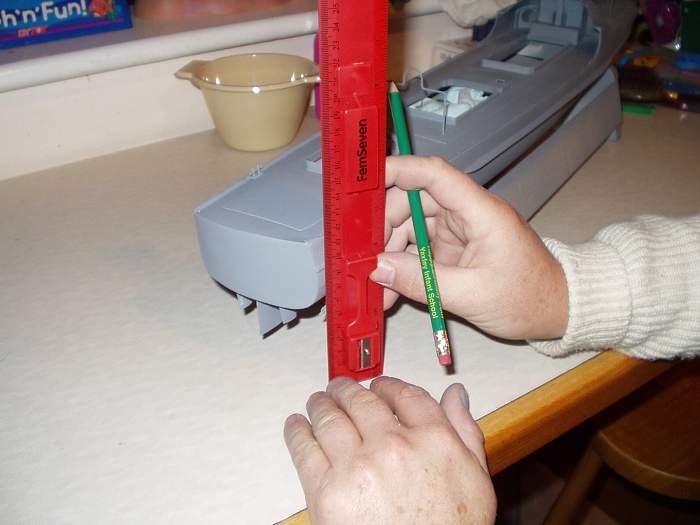

The instructions state the
water line is 12mm down from the underside of the rear rubbing strake and
the same amount on the front if the boat is place level on the stand - how
do you put a round bottom boat level in a stand???!? |
 |

|
Best guesses again here and a
lot of levelling and eyeing up! |
|

|

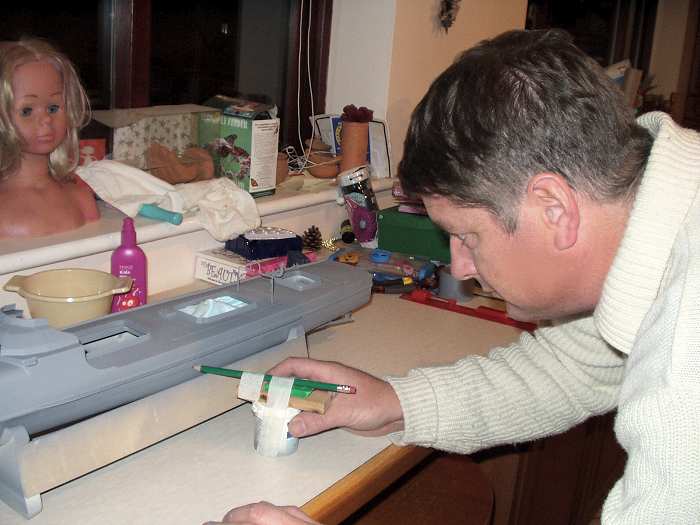

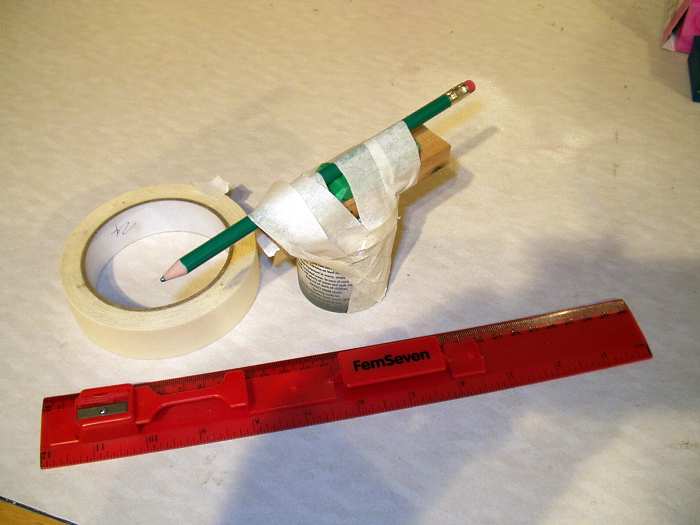

This is 'Bradders'
patented water-marking-constant-level-device!

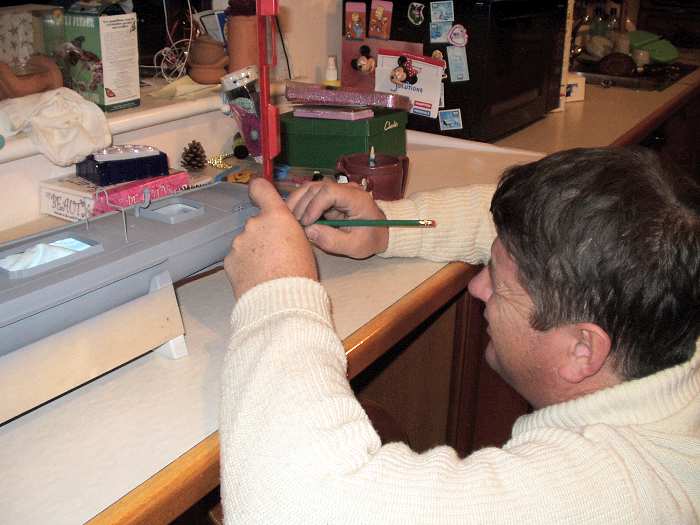

When doing this, take ages
in making sure both side of the boat are level - Starboard to Port &
don't anyone like me move it after you have set it all up. Opps!
Sorry! |
 |

|

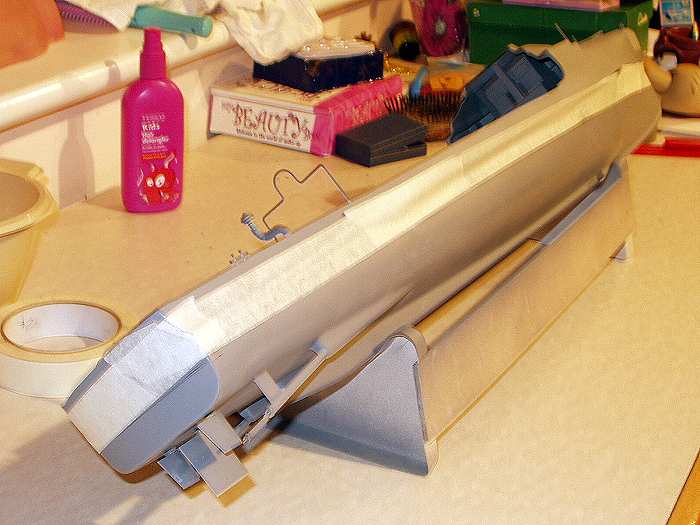

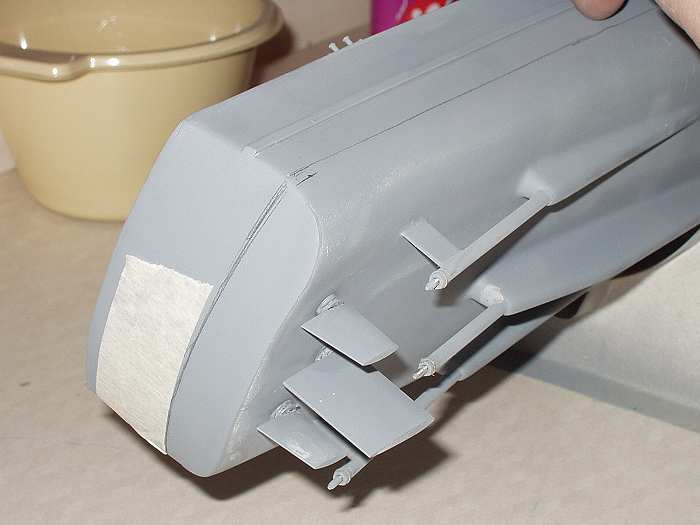

Once the line is clearly
marked, masking off can commence. |
 |

|

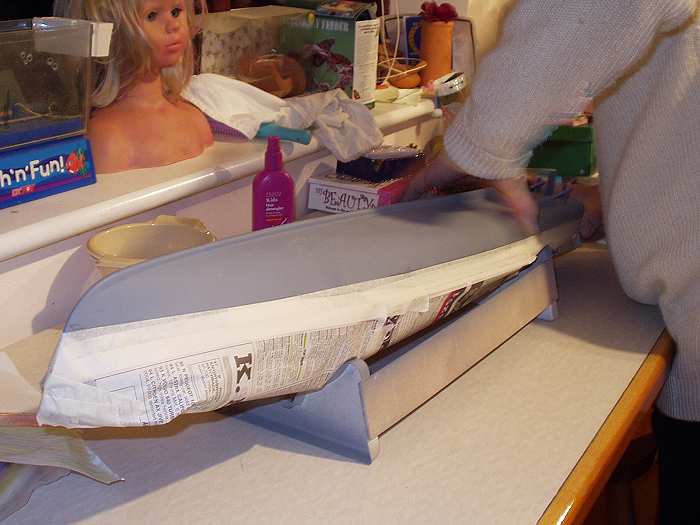

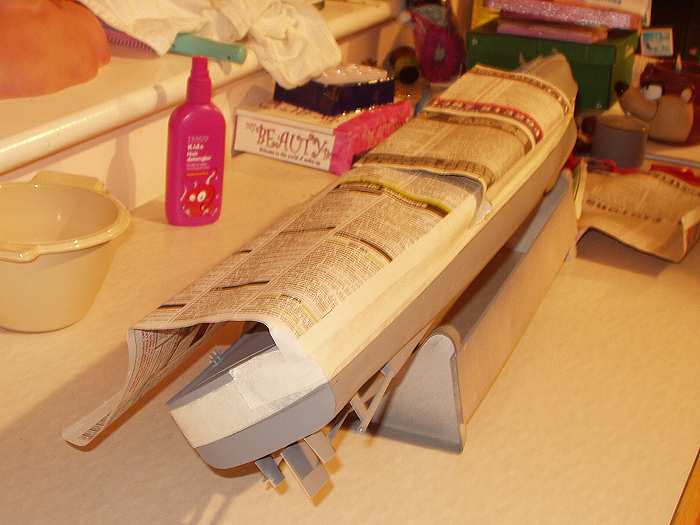

Once carefully masked off, rub
the edges down over and over again. Cover the rest of the boat with
newspaper and tape it down to just below the masking line. |
 |

|
Rub down your masking tape
again and clean your hull with a 'tack' cloth, "lightly fry in olive oil
and leave to stand for 2 hours!" |
|

|

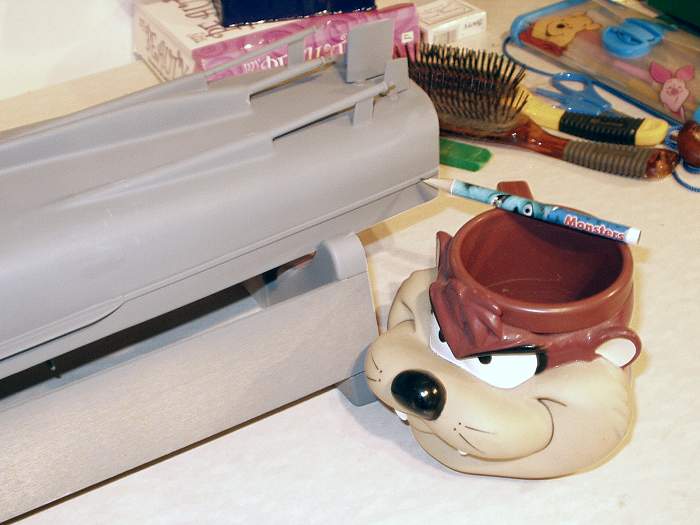

After MUCH discussion,
argument, threats, a lot of finger pointing, and crying, I was
convinced to go with 'Bradders' paint scheme! Dark
grey underside, light grey on top.
We are using car plastic bumper paint as it has a stain finish |
 |

|
Two of the hatches are fixed
down semi permanently, only to be removed in times of major maintenance,
these were fixed town with silicon bath type sealant.
Well I haven't been round
'Bradders' place for the last couple of days but
'Bradders' assure me that it's still in one piece.
|
 |

|

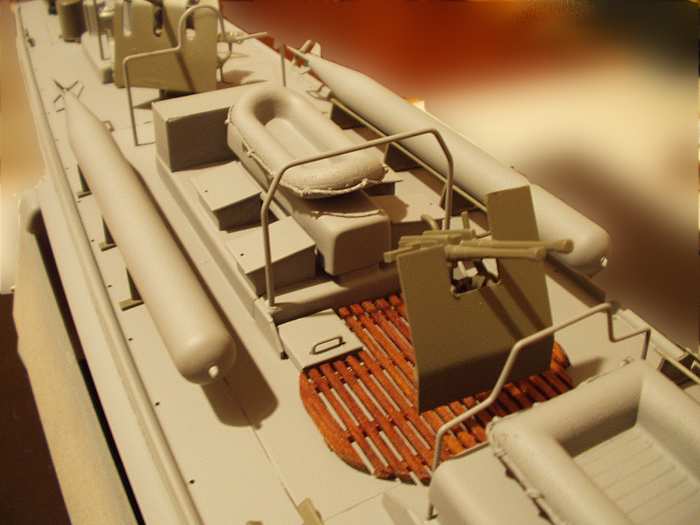

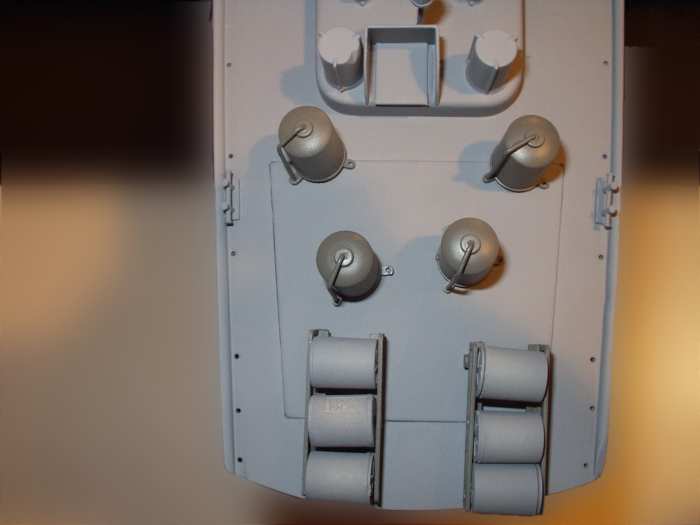

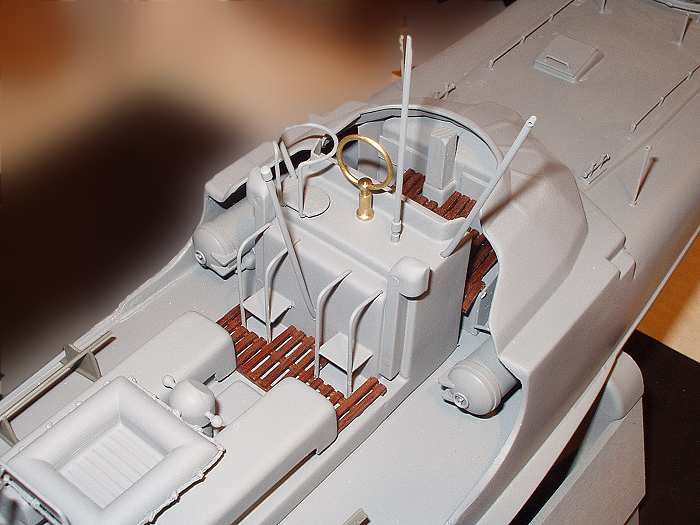

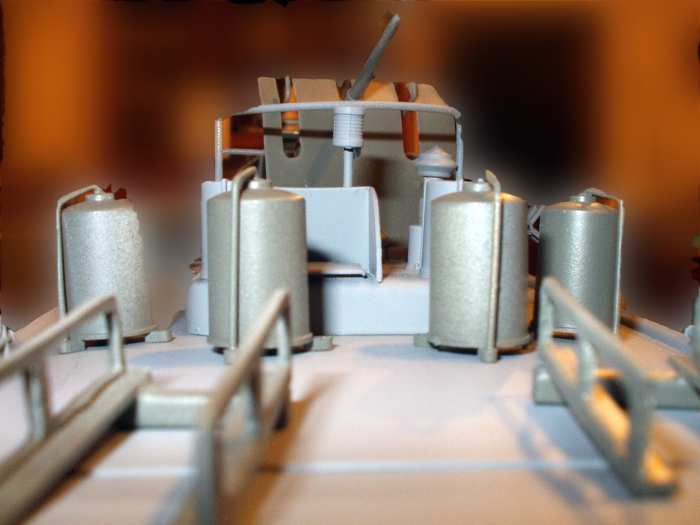

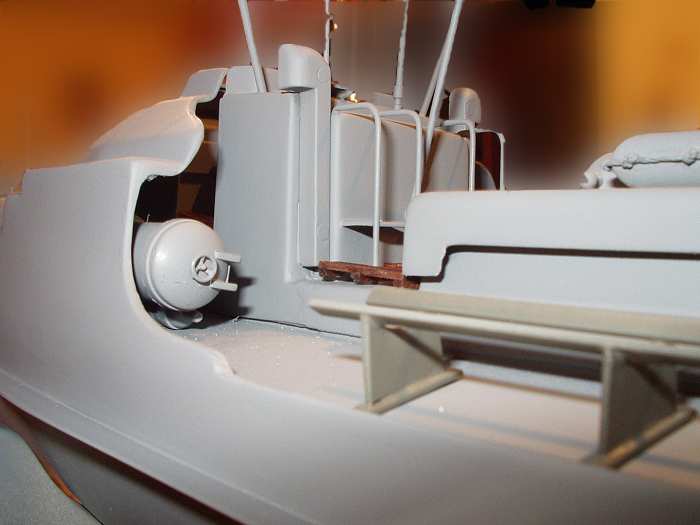

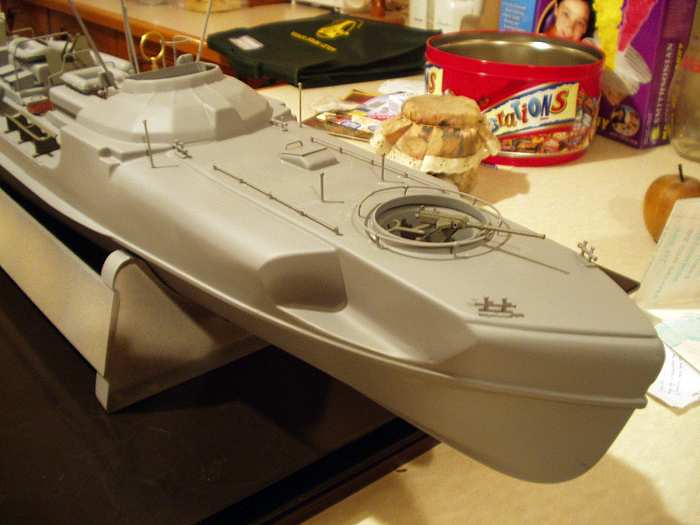

Well she's finally taking
shape. 'Bradders' has
filled and rub down all the final blemishes and spraying on the final
coats of paint tonight and hopefully the protective satin coat of varnish
this weekend. I should be at
'Bradders' now but it 12:30 AM and I'm typing this up instead !!!??? |
 |

|
Well that is for this
week, hopefully to the water!
The more astute of you may have noticed that I haven't actually done
anything on boat this week..... well that's just not true! I've done....er.....! |
 |
Well all this just my opinion, but what do I
know!
|
